AERIAL TECHNOLOGY / 2026

FLEED

PHASE 01

Ideation & Form

Fleed takes inspiration from the streamlined form of a bike helmet, combining aerodynamics with protection. Its smooth, compact body enhances efficiency, while the extended arms provide balance and stability blending movement with purpose in a farming context.

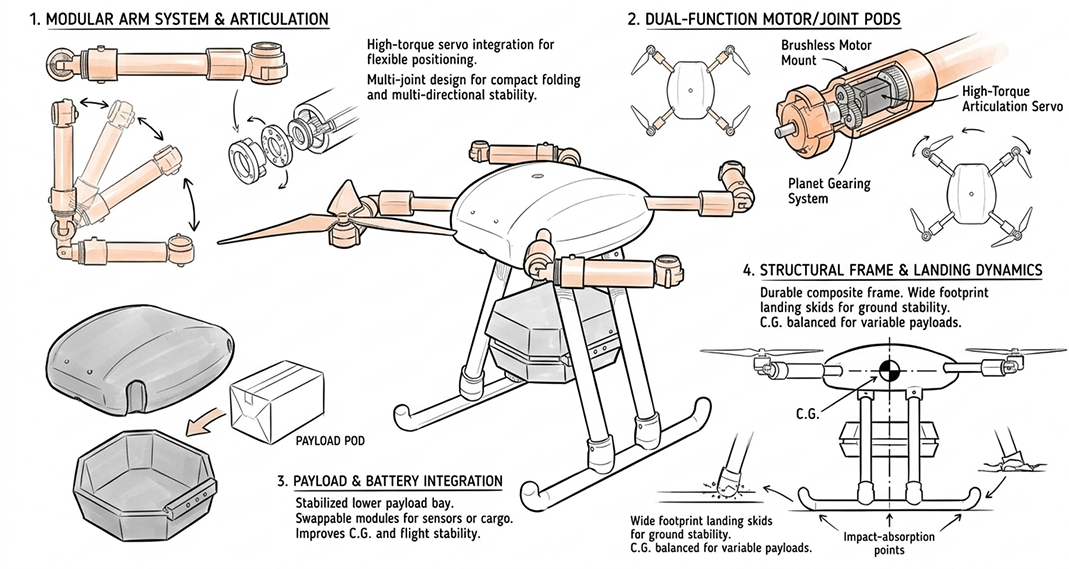

Fleed Concept Sketch 1
Fleed Concept Sketch 2
Ideation

Bike helmet aerodynamics adapted for agricultural payload — streamlined housing, articulating arms, swappable bay.

PHASE 02

Engineering

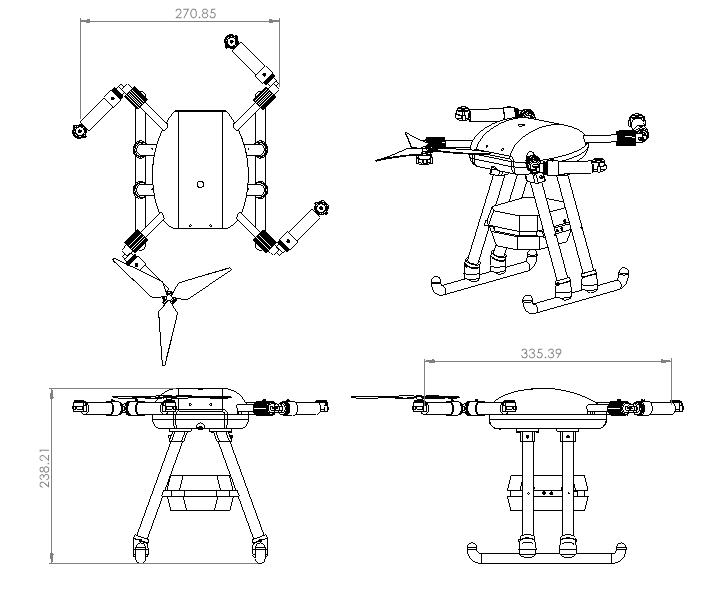

Technical orthographic and isometric projections generated in SolidWorks to establish precise manufacturing tolerances and define component assembly for the Fleed airframe.

Fleed Engineering Drawing

Technical Specification

The assembly was engineered for high-stress agricultural environments, focusing on the integration of high-torque actuators and modular motor mounts.

  • Software SolidWorks 2024
  • Units mm (Millimeters)
  • Scale 1:1 (Full Scale)
  • Prototype Material 3D Printed
  • Final Materials Carbon Fiber & Aluminum
PHASE 03

Prototype Process

18-step build: articulating arm assembly, payload bay, motor pod mounting, landing skid testing.

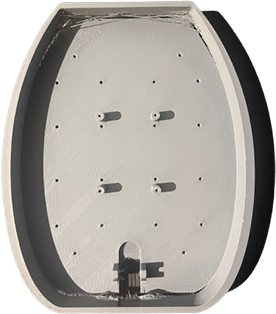

Step 01 01

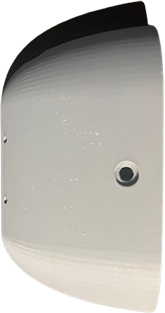

Step 02 02
Step 03 03
Step 04 04

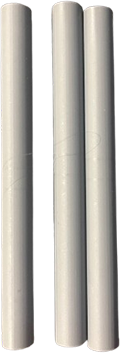

Step 05 05

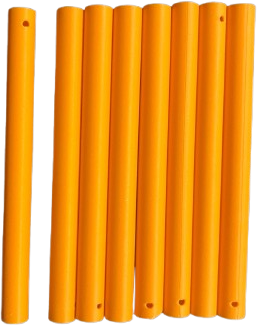

Step 06 06

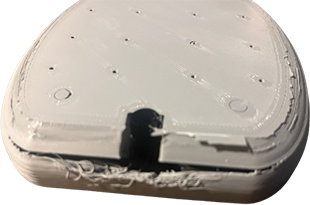

Step 07 07
Step 08 08

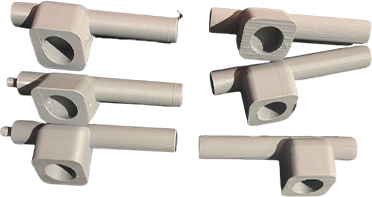

Step 11 11
Step 12 12
Step 16 16
Step 14 14
Step 13 13
Step 15 15

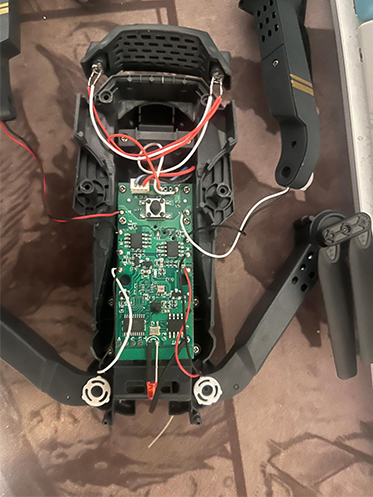

Step 09 09

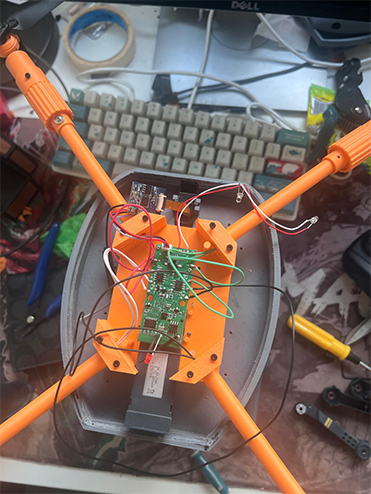

Step 10 10
PHASE 04

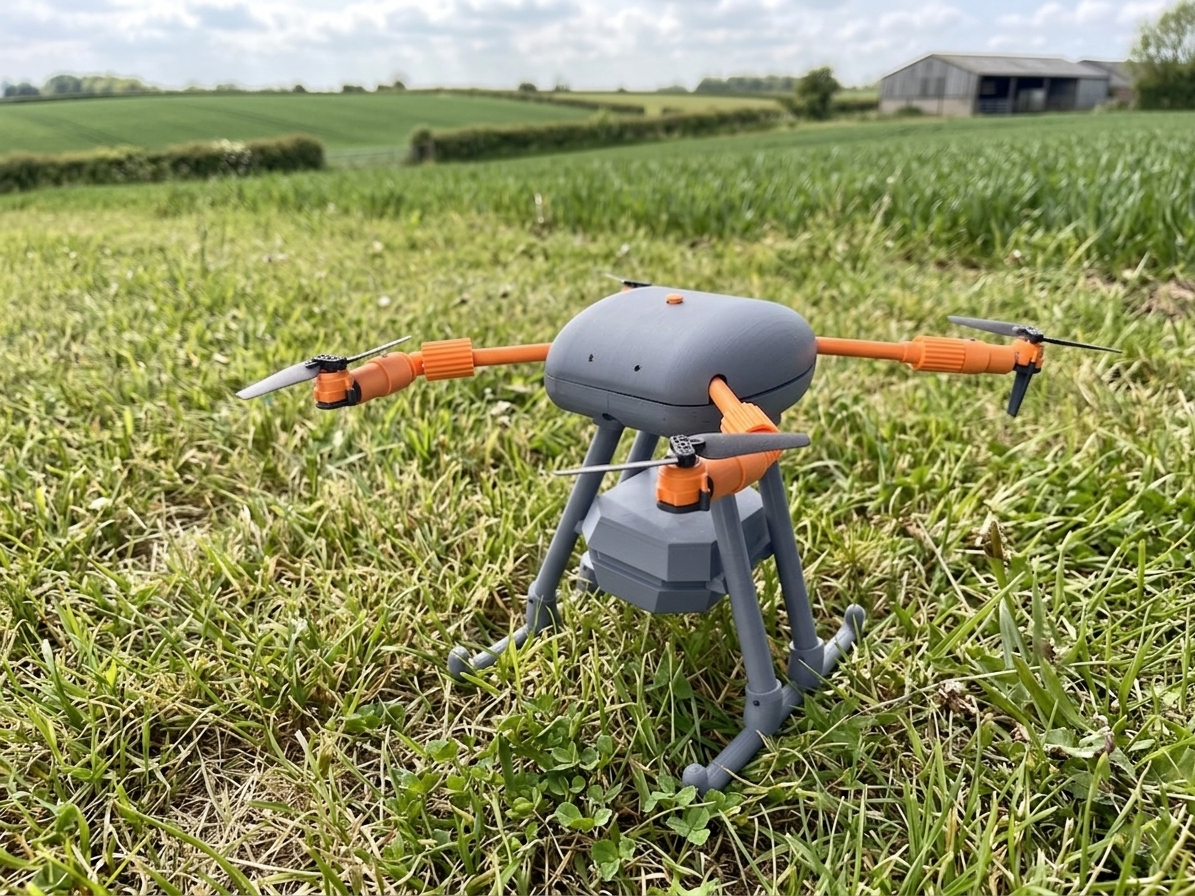

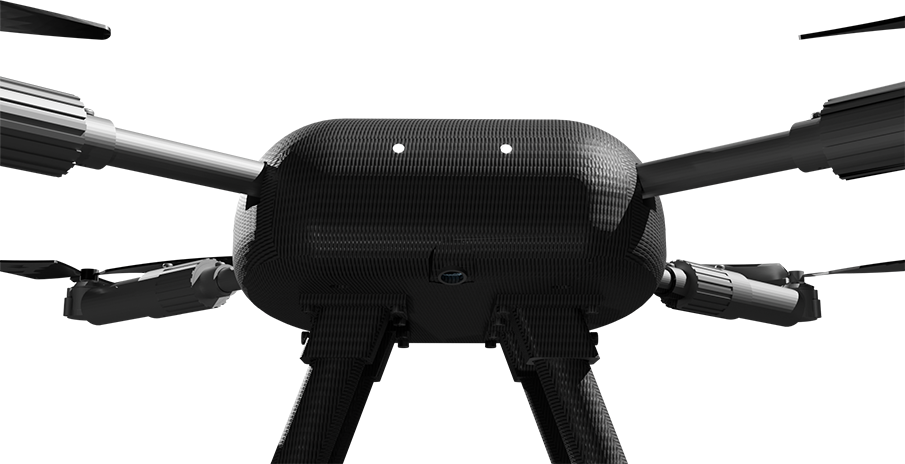

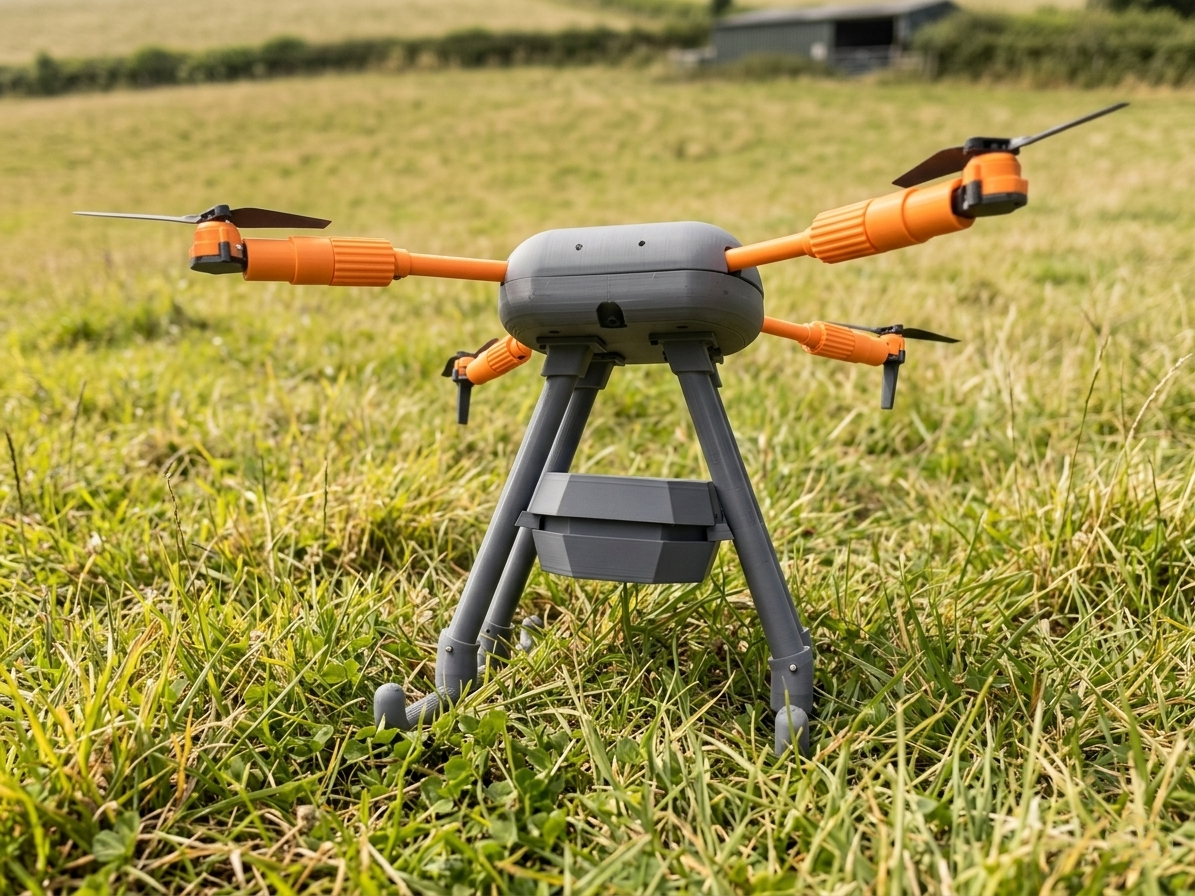

Final Execution
