CONCEPT TO MANUFACTURE

TRUE
HUMAN

PHASE 01

Ideation & Form

Meet the True Human — where anatomy meets innovation. Inspired by the structure of the human spine, this 3D-printed watch transforms organic movement into a sculptural, wearable form. Its interlocking segments and minimal face create a balance of futuristic design and human elegance.

True Human Anatomical Sketches
Concept

Spine-inspired interlocking geometry — each segment articulates at the wrist like a vertebra, derived from direct anatomical reference.

Material

FDM 3D-printed in multiple color iterations — physically worn and validated for flex and comfort at the wrist.

PHASE 02

Engineering & Scale

Technical orthographic views were generated in SolidWorks to establish precise dimensions for the 1:1 scale wearable prototype.

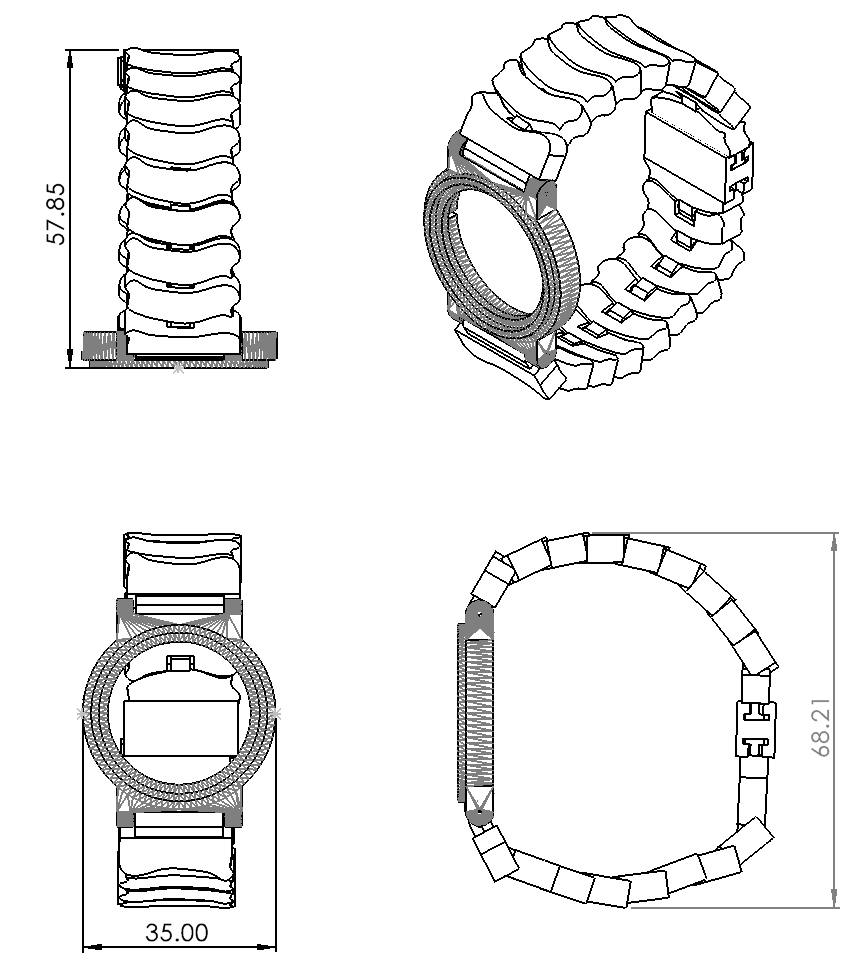

True Human Engineering Drawing

Technical Specification

Detailed projections showing the top, front, and side profiles. This drawing ensures the interlocking segments match the anatomical curvature of the human wrist.

  • Software SolidWorks
  • Units Millimeters (mm)
  • Prototype Scale 1:1 (Full Scale)
  • Material Metal (PLA Prototype)
PHASE 03

Prototype Process

Interlocking vertebra segments — FDM iterations, flex validation, Casio movement disassembly and integration.

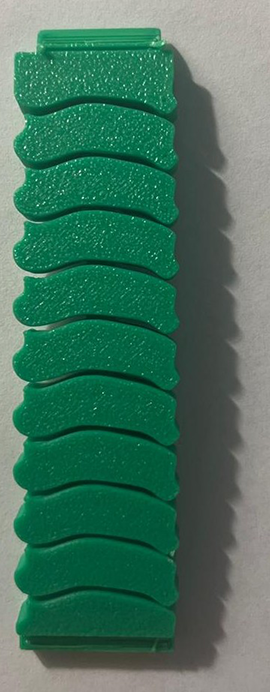

Step 01 01

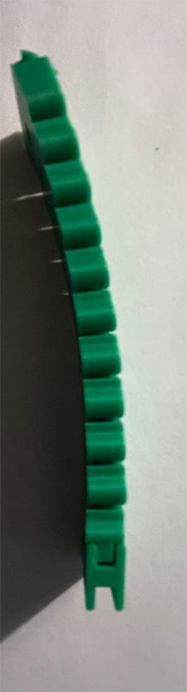

Step 02 02

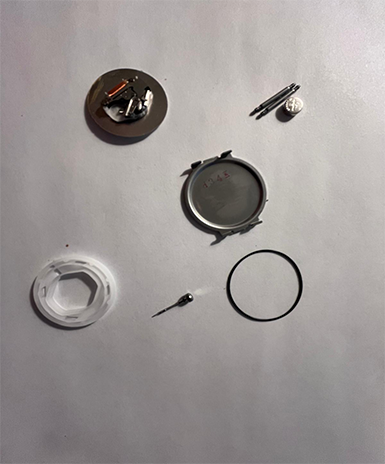

Step 03 03

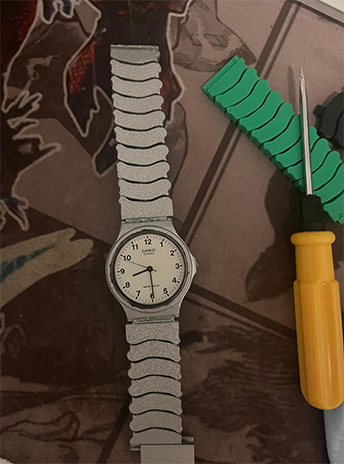

Step 04 04
Step 07 07
Step 06 06

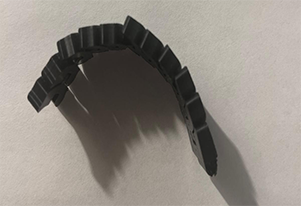

Step 08 08

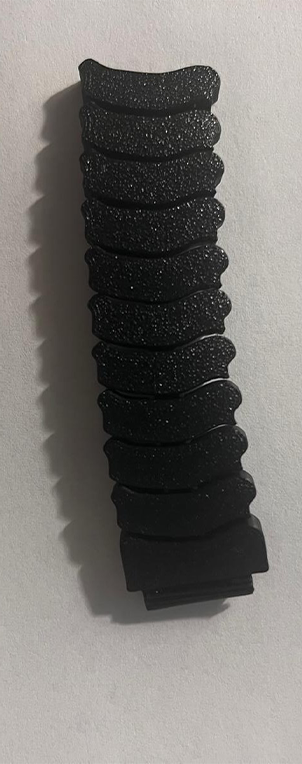

Step 05 05
PHASE 04

Final Execution

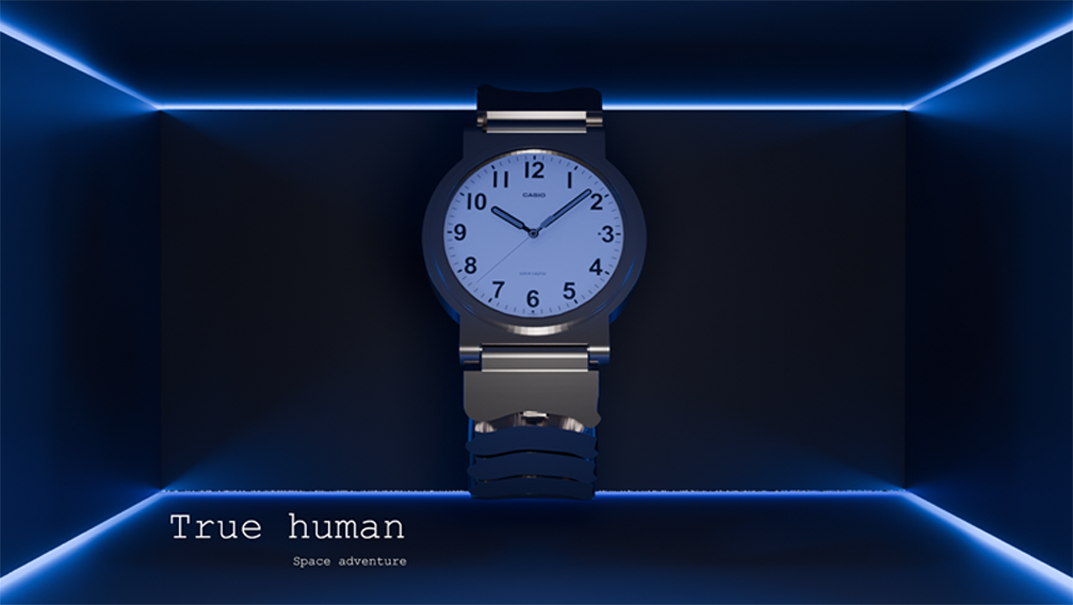

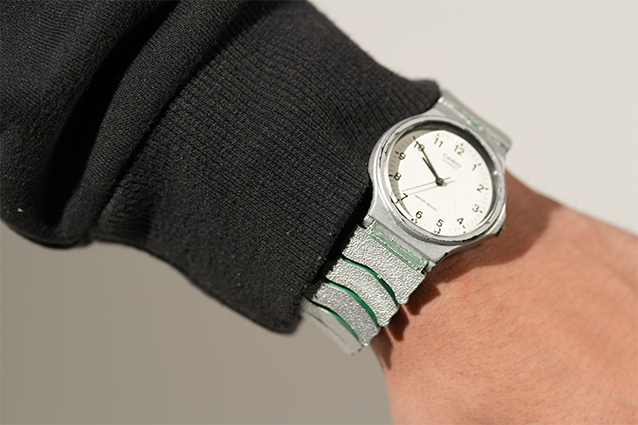

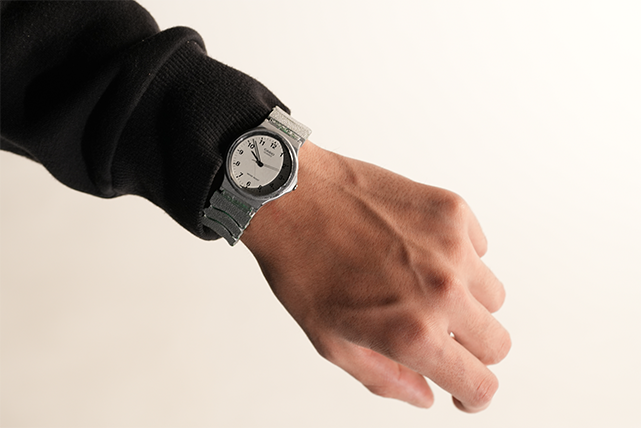

The final prototype demonstrates the seamless integration of 3D-printed interlocking segments, capturing the fluid movement of the human spine in a functional timepiece.
