CONCEPT TO MANUFACTURE

FLUIDO

PHASE 01

Ideation & Form

Fluido captures the essence of motion frozen in time. Inspired by the fluidity of water and organic growth, its sculpted legs twist and open with a sense of natural rhythm.

Fluido Concept Sketch 1
Fluido Concept Sketch 2
PHASE 02

Engineering

Orthographic and isometric projections generated in SolidWorks. The design utilizes complex curves to translate the ideation sketches into manufacturing data.

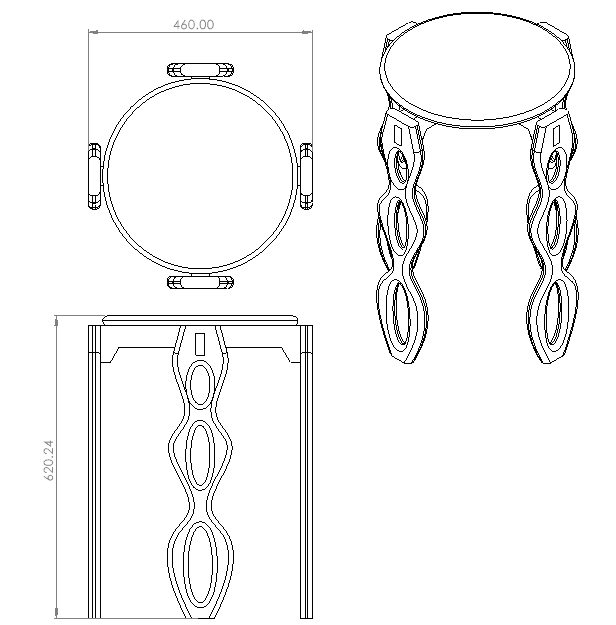

Fluido Engineering Drawing

Technical Execution

  • Software SolidWorks 2024
  • Units mm (Millimeters)
  • Scale 1:1 (Full Scale)
  • Materials Poplar & Plywood
PHASE 03

Prototype Process

CNC routing, hand finishing, stacking geometry validation across 9 fabrication steps.

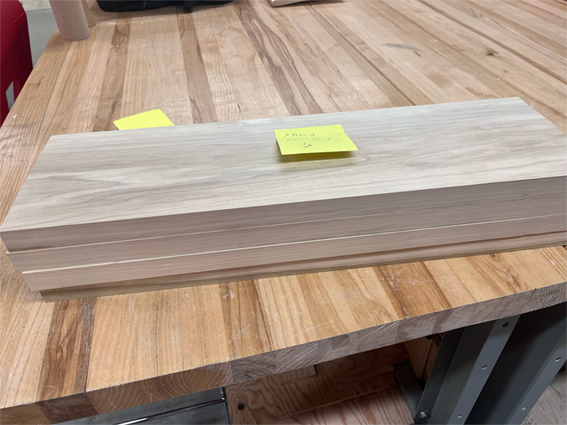

Step 01 01

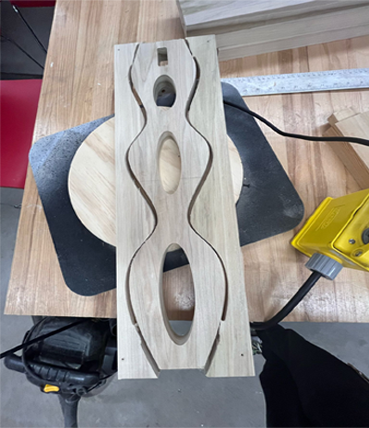

Step 02 02

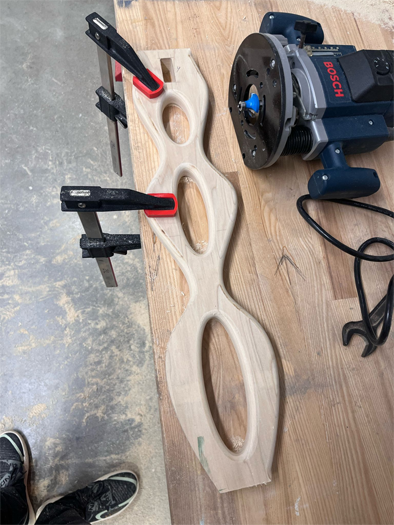

Step 03 03

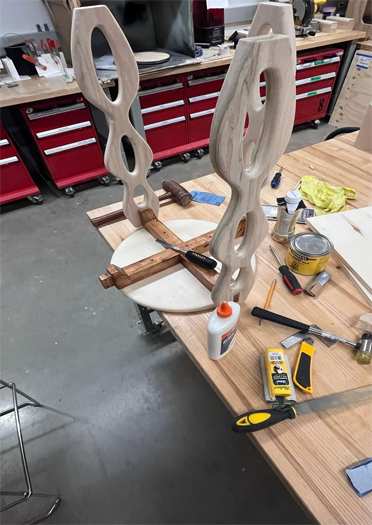

Step 04 04

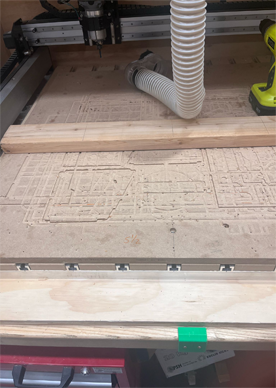

Step 05 05

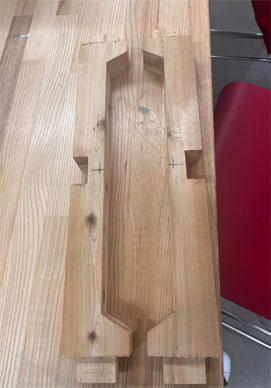

Step 06 06

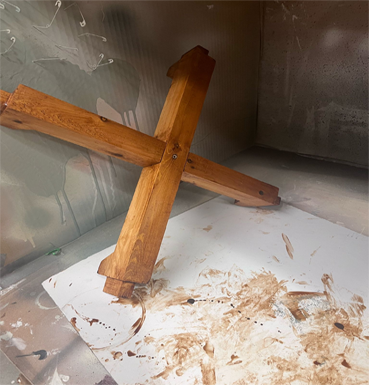

Step 07 07

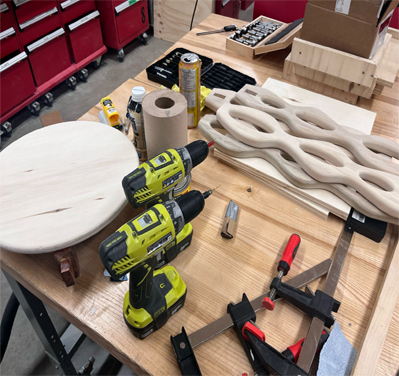

Step 08 08

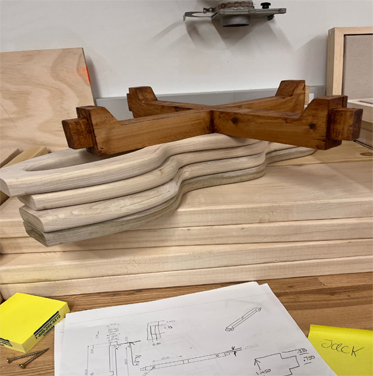

Step 09 09
PHASE 04

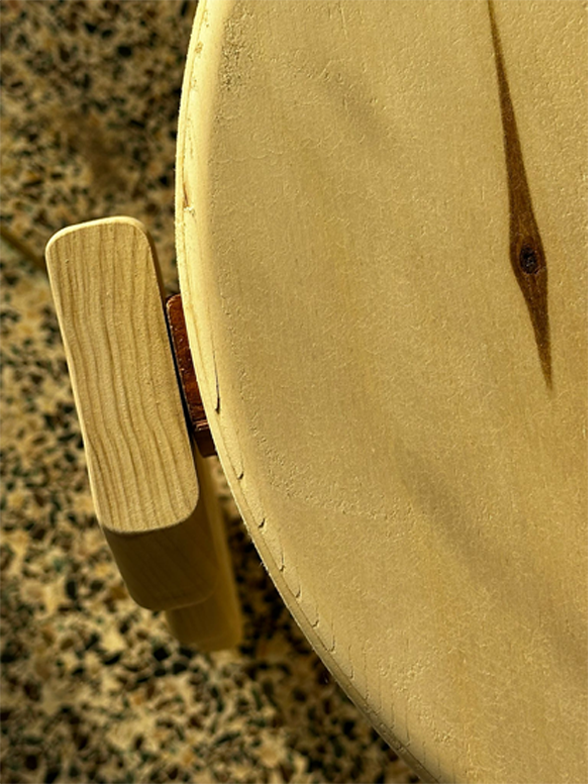

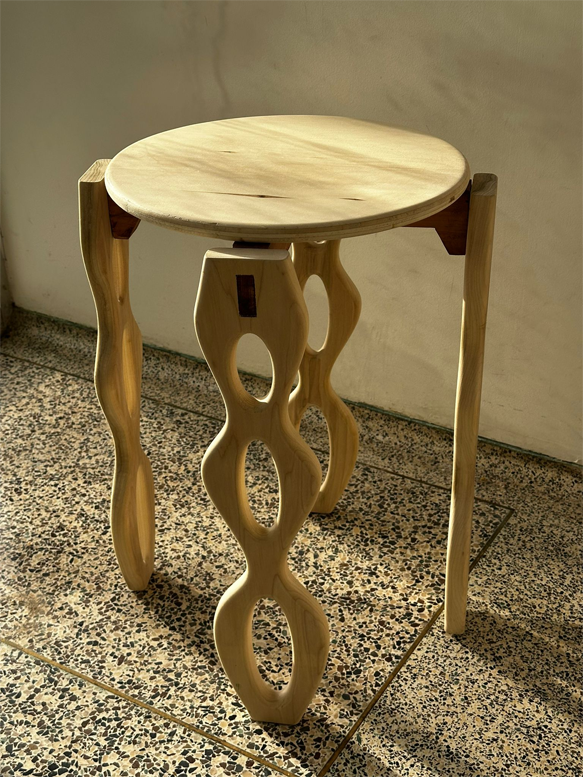

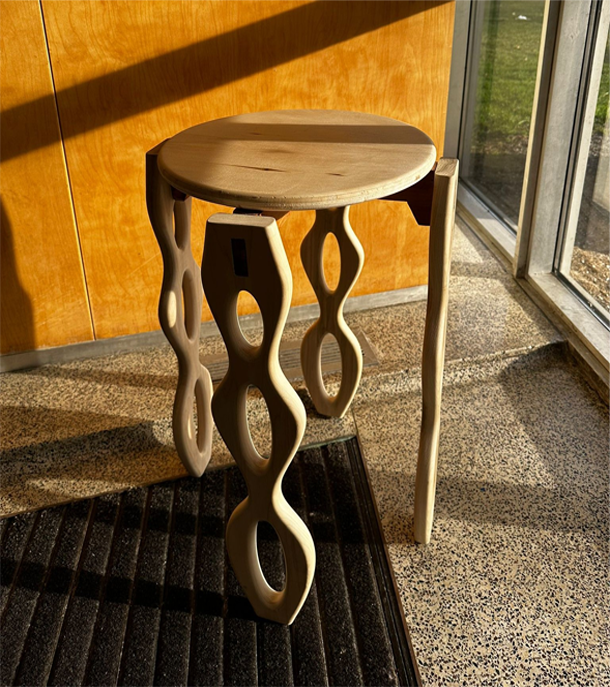

Final Execution
