CONCEPT TO MANUFACTURE

PILL
LAMP

PHASE 01

Ideation & Form

Pill Lamp: A harmonious fusion of wood, aluminum, and vacuum-formed plastic, inspired by the simplicity of a pill and crafted through perseverance and innovation.

Pill Lamp Sketch 1
Pill Lamp Sketch 2
Pill Lamp Sketch 3
PHASE 02

Engineering

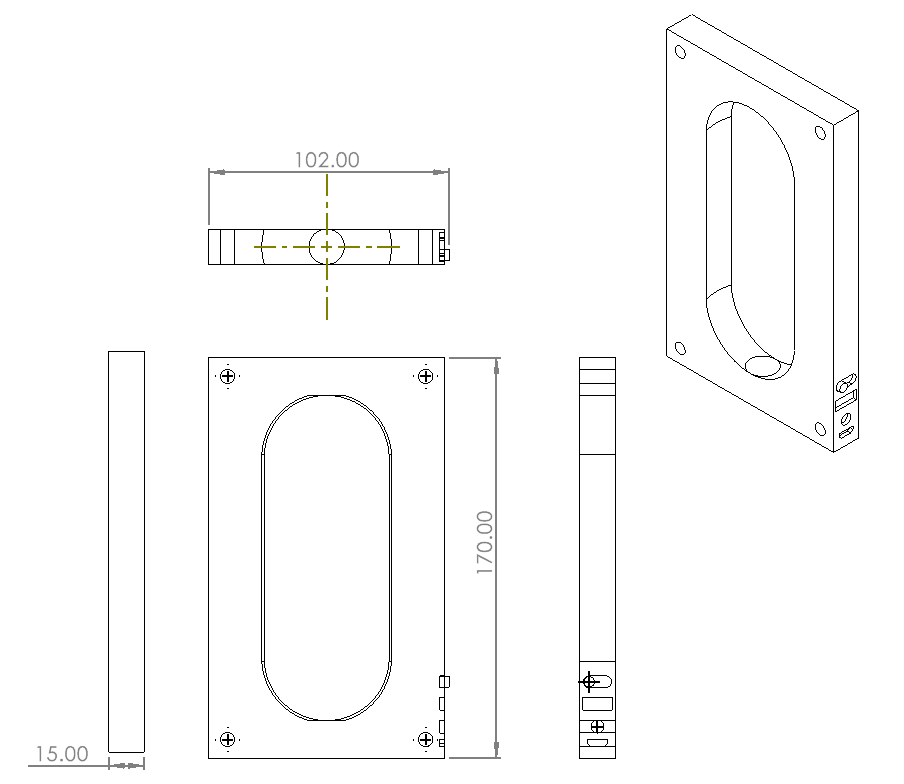

Pill Lamp CAD Technical Drawing

Technical Execution

Detailed technical drafting focusing on the assembly of the internal LED housing and the precision fit of the vacuum-formed shell.

  • Software SolidWorks 2024
  • Materials Aluminum, Wood, Plastic
  • Scale 1:2
  • Units Millimeters
  • Lighting Dimmable LED Array
PHASE 03

Prototype Process

Vacuum-forming iterations, aluminum bending, wood tablet shaping, and final assembly.

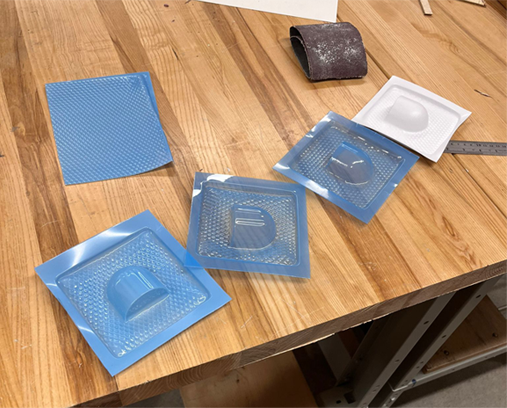

Step 01 01

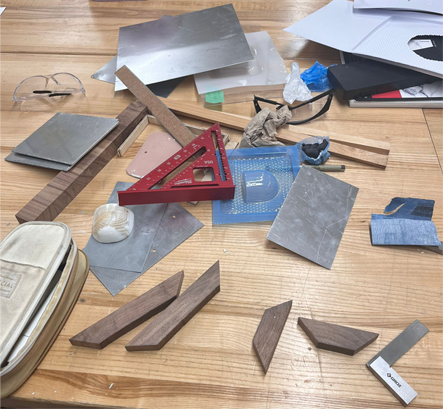

Step 02 02

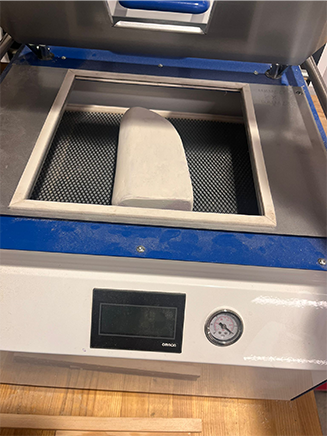

Step 03 03

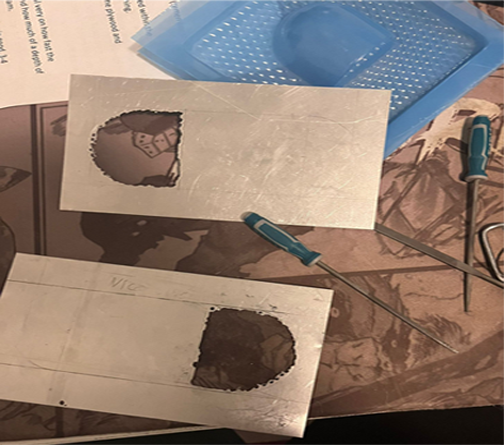

Step 05 05

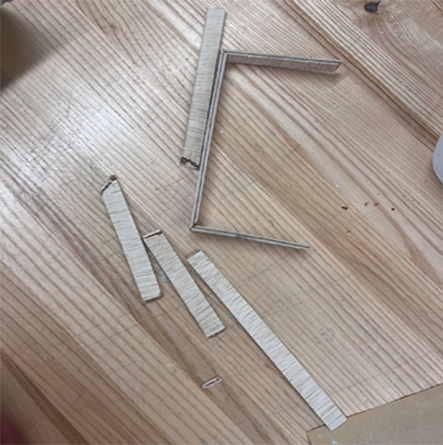

Step 06 06

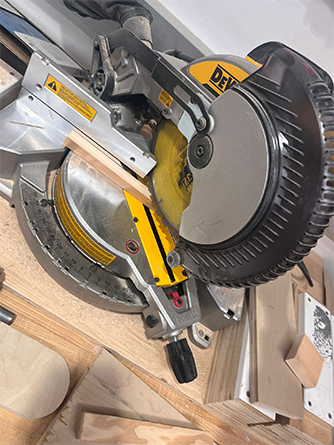

Step 04 04
PHASE 04

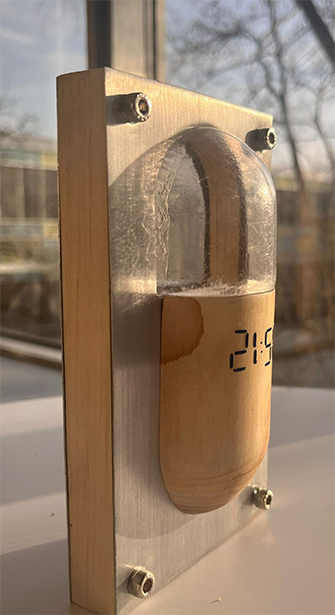

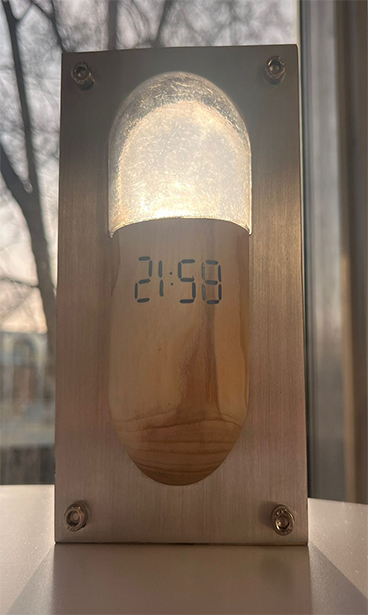

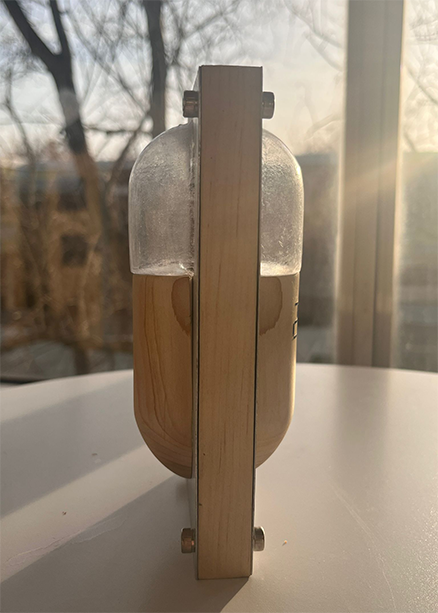

Final Execution

← Swipe or use arrows to view gallery →

Double tap to view full resolution
