C8H1
PHASE 01
Ideation & Form

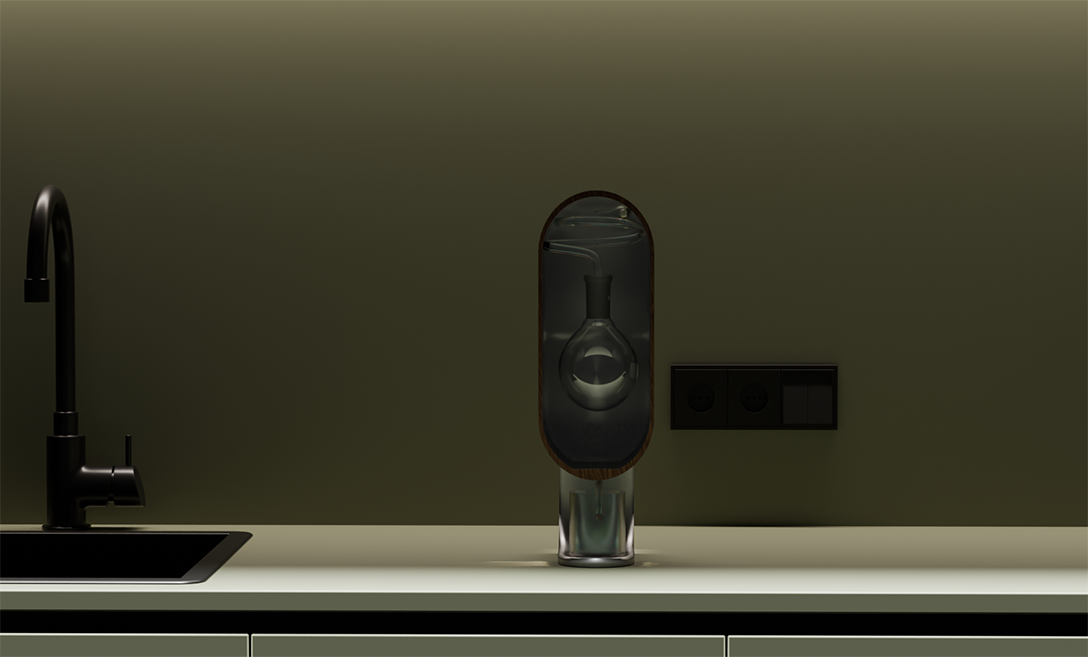

Meet the C8H1 a perfect balance of art and science. With its intricate glass coil, boiling flask, and burner, all encased in luxurious wood and aluminum, this syphon coffee maker is a truly futuristic design that transforms every cup of coffee into a masterpiece.
Ideation
Futuristic silhouette meets the theatrical ritual of syphon brewing — visible process as design intent.
PHASE 02
Engineering

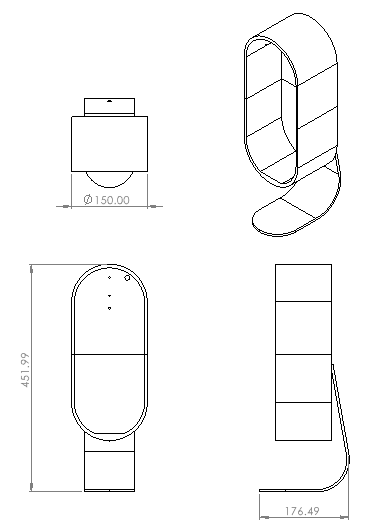

Technical orthographic and isometric projections generated in SolidWorks to establish precise manufacturing tolerances.
Technical Specification
- Software SolidWorks 2024
- Units mm (Millimeters)
- Scale 1:1 (Full Scale)
- Prototype Material 3D Printed
- Real Materials Wood & Metal
PHASE 03
Prototype Process

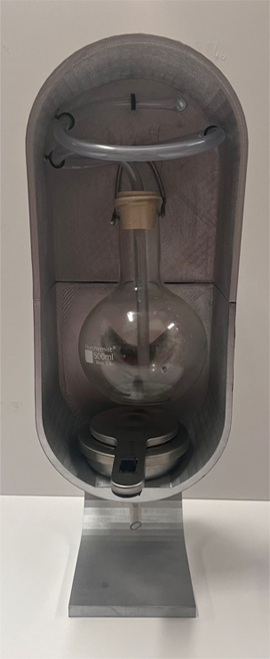

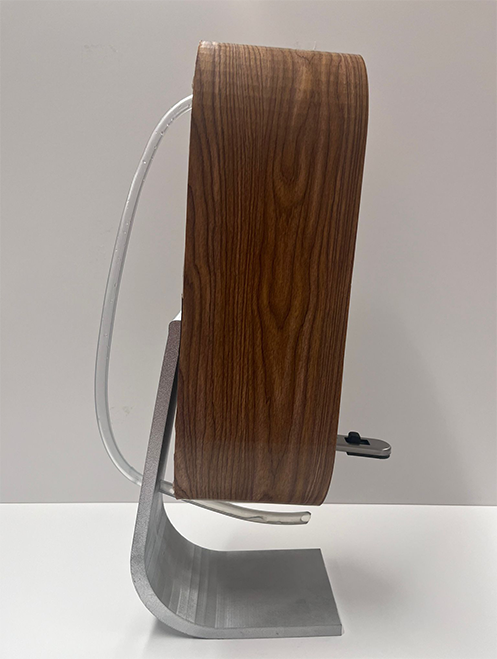

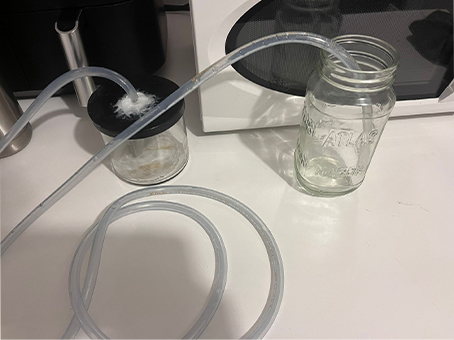

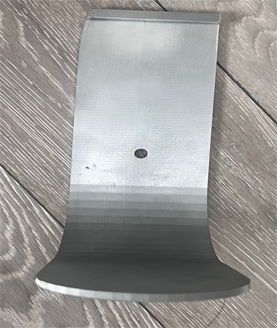

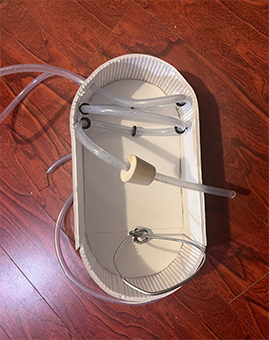

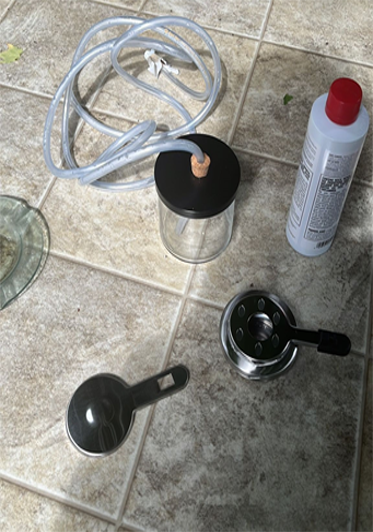

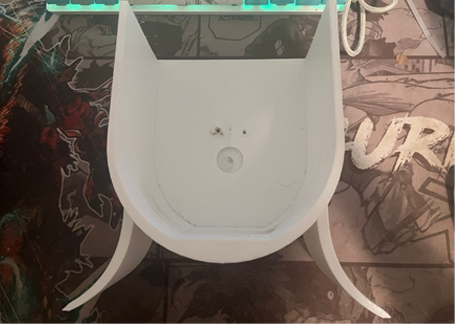

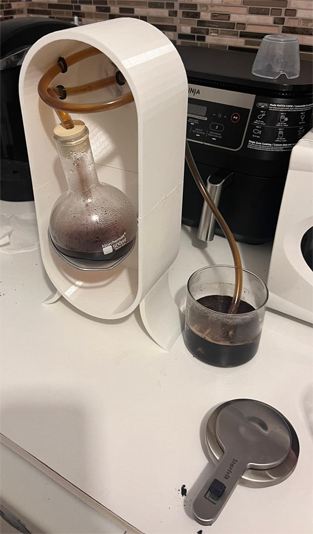

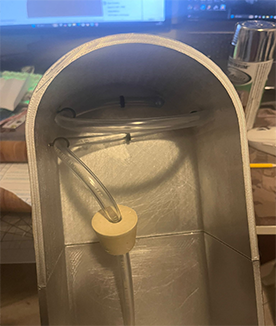

Vacuum brewing prototype — wood veneer application, aluminum spray finish, glass coil assembly.
PHASE 04
Final Execution
