CONCEPT TO MANUFACTURE

WAVY
CHAIR

PHASE 01

Ideation & Form

The Wavy Chair bridges the organic and the industrial, seamlessly blending wood and concrete.

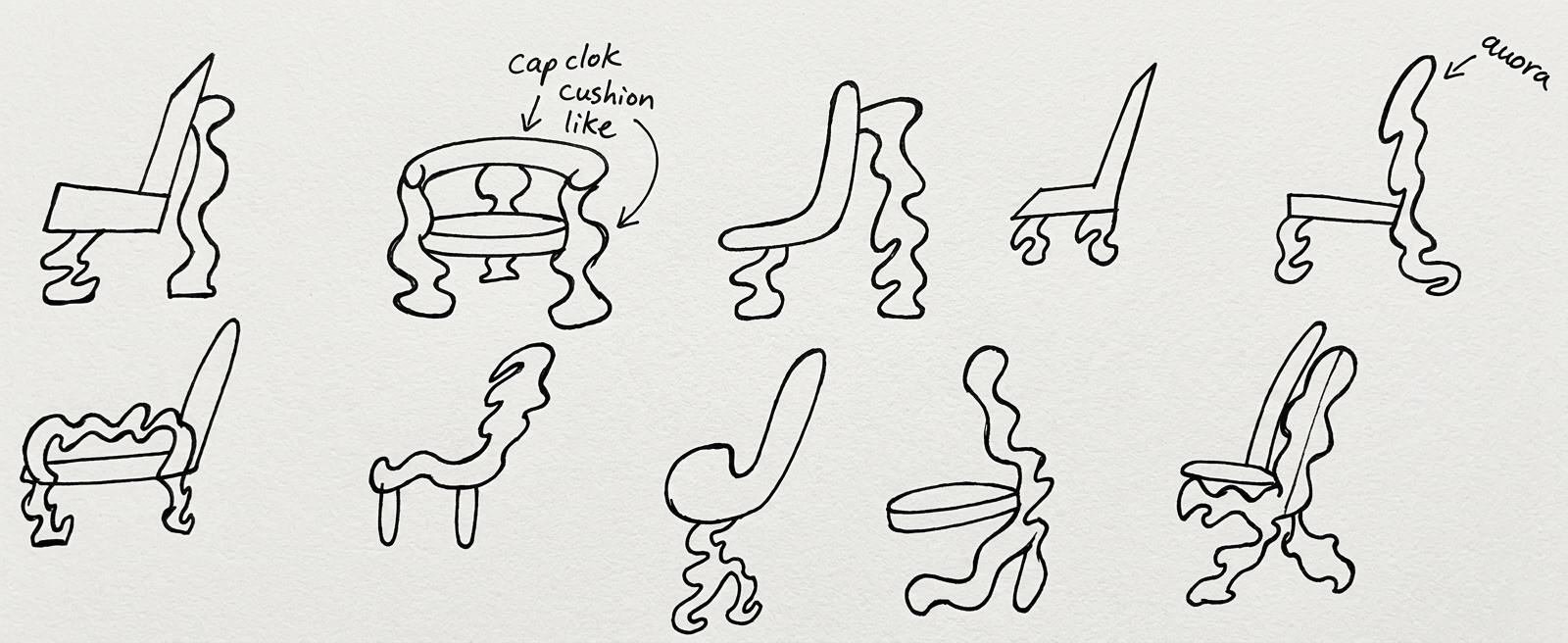

Wavy Chair Concept Sketches

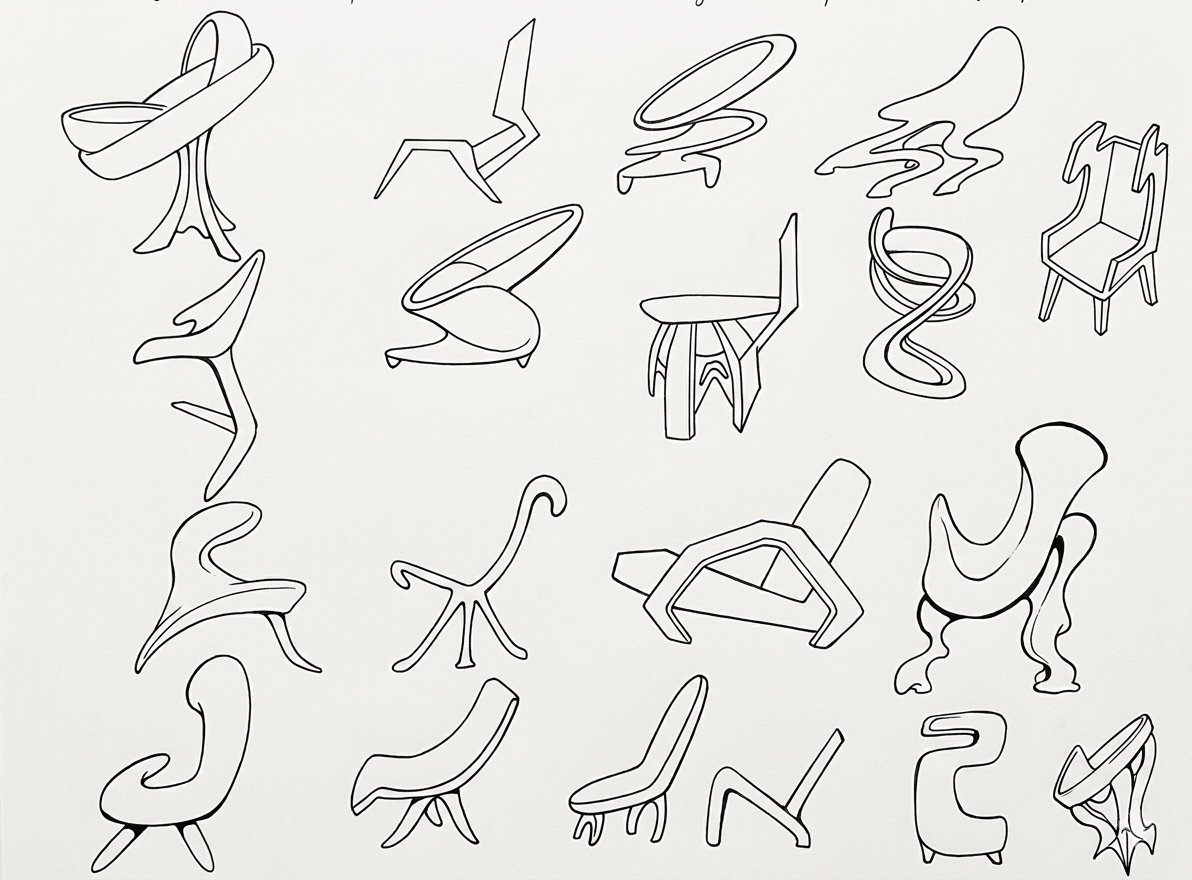

Form Exploration Sketches
PHASE 02

Engineering & Scale

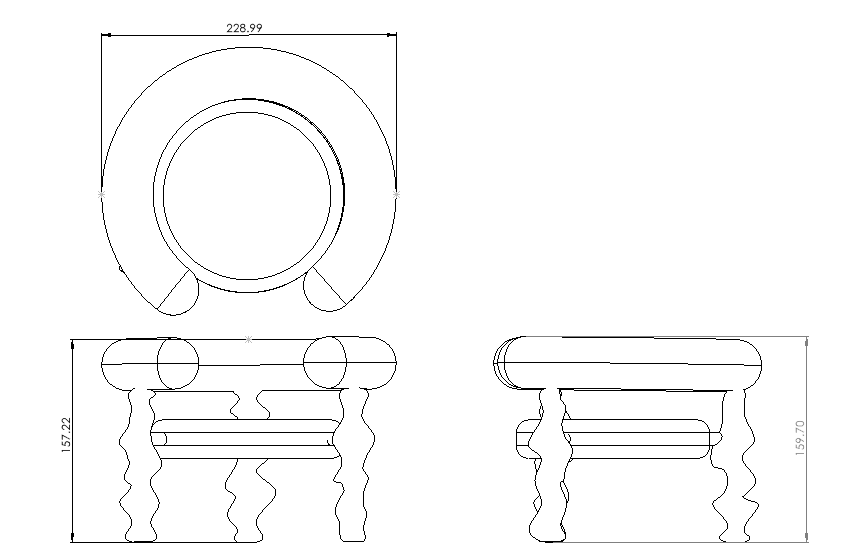

Technical orthographic views were generated to establish precise dimensions for the 1:6 scale prototype.

Wavy Chair Engineering Drawing

Technical Specification

  • Software SolidWorks
  • Units Millimeters (mm)
  • Prototype Scale 1:6
  • Primary Material Maple Plywood
PHASE 03

Final Execution

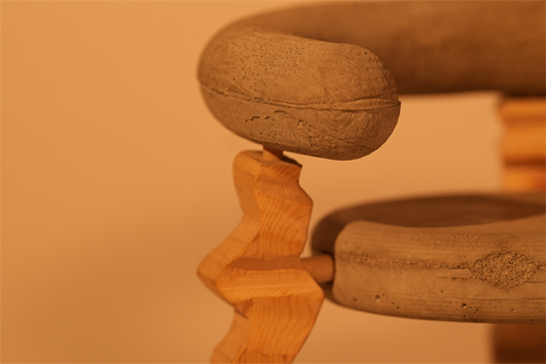

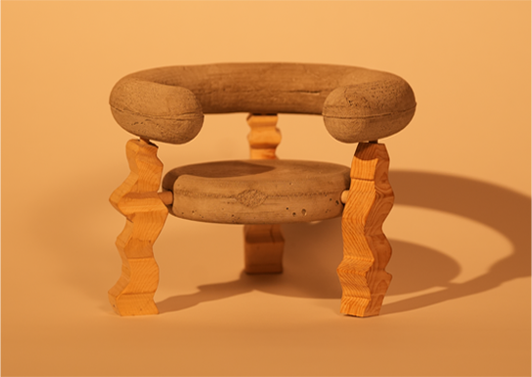

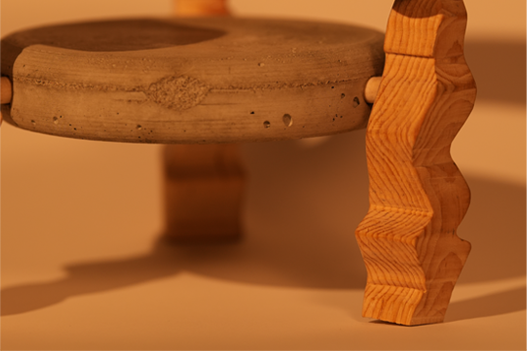

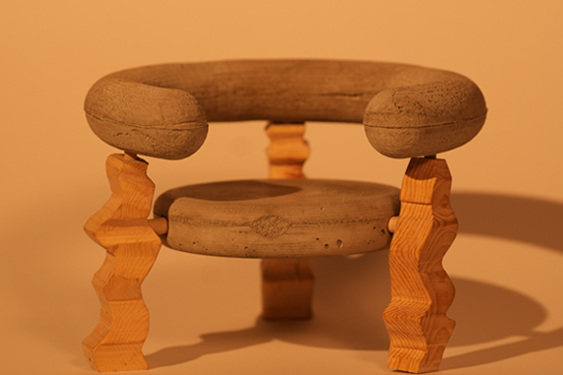

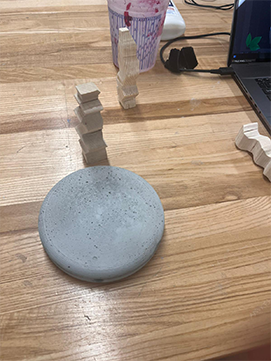

The final realization of the Wavy Chair highlights the organic flow of the design and the structural harmony between its unique material components.
